1. SANHE blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
2. Centrifugal system open the shutters at complete 90 degree, ensure the lowest air resistance and biggest air volume. When closed, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, high strength, no rust, low frication.
3. Belts are Japanese Mitsubishi brand, long service life, maintenance free. From 2010 first adopt Type B belt which is 3times longer service life than type A.
4. Both Chinese famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first one an home put in the phase lack protection device which would power off when short of electricity. Motor protection grade: IP55, insulation class: F grade.
5. Belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, low vibration. Blast-sanding treatment promise attractive appearance, eliminate internal stress, and improve its own rigidity and stability.
6. Linking parts are made of aluminum alloy, light weight, not deformation, and with wear-resistant shaft sleeve, reduce the clearance, then reduce frication, ensure the shutters open flexibly. The spring is made of 304 stainless steel, long work time, no deformation, no rust.
7. Fan bearing adopts France imported double-row bearing with special waterproof design, water can't enter. High strength, low noise, maintenance free and long service life.
8. Motor plate has multiple functions with the use of a unique design. Both 1HP and 1.5HP motor are available. The motor pulley and belt pulley are in the same line, reduce the belt wearing and increase belt service life.
SANHE DJF Series Fan Specifications:

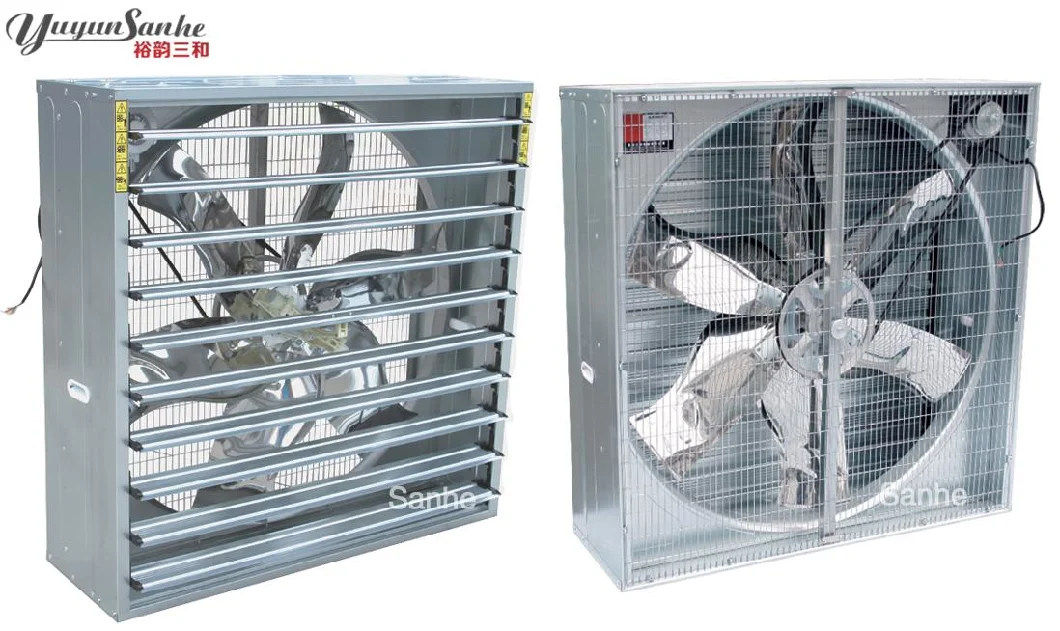

SANHE DJF Series Fan Photos:
1. Package with carton box in completely assembled or unassembled.
1×20GP loads assembled 28pcs, unassembled 130pcs.
1×40HC loads assembled 57pcs, unassembled 300pcs.
2.Shipped with dry containers, can be deliver to Qingdaro Port or destination Port.
1. Sample is available, it needs pay.
2. The Galvaized Sheet frame, and the Stainless Steel frame is available
1. Price items: EXW, FOB Qingdao, CFR or CIF
2. Payment term: 30% T/T deposit in advance, the balance be paid againse the BL copy. Or 100% L/C at sight.
Quality first , Customer first, Prestige first
Shandong Yuyun Sanhe Machinery Co.,Ltd is the professional manufacturer of ventilation, cooling equipment, humidification and heating equipments.
Our company is located in Qingzhou , Shandong Province, a developing city with long history. The factory occupied 30,000spm and the workshop area is 15,000spm. We have an efficient team containing more than 300 workers.
Our products are widely used in agriculture and industry's ventilation, cooling system and heating system
Application for: animal husbandry ,poultry house ,livestock breeding, flowers and plants, greenhouse ,factory workshop, textile, chemical, medicine ,tea, vegetable storage and supermarket
Nowadays ,Our products have passed "CE"and "CCC" certificates ,the company has set up more than 200sales branches in more than 20 provinces of the country ,and the products have been exported to tens of countries and regions such as Asia , Europe, America, Australia and so on
|modle||blades diameter(mm||blades rotational speed(rpm||motor rotational speed(rpm||air flow(m³ /h||total pressure||noise decible||input power||rated voltage||higth(mm||width(mm||thickness(mm|
