220V Fume Extractor Fan 500mm Tubular Axial Fan for Air Ventilation

Low Noise  Exhaust Fan Industrial Axial Blower FeatureThe Fan adopts specially designed forward curved three-dimensional twist bladeLow noise,large air flow,high efficiency and stable air pressureHigh-quality punching sheet steel for structural parts, easy to installUtilizes CAD optimized design for blade and air outle

Featured Products

Low Noise  Exhaust Fan Industrial Axial Blower
Feature

The Fan adopts specially designed forward curved three-dimensional twist blade
Low noise,large air flow,high efficiency and stable air pressure
High-quality punching sheet steel for structural parts, easy to install
Utilizes CAD optimized design for blade and air outlet, turned edge flange
The fan is power coated with lasting bright color
The fan with ffront guard,bakc guard is option

Apllication

Suitable for ventilation in industrial and mining enterprises,civil buildings, fatories, workshops, warehouse, public place,entertainment places and more.

Technical Parameters

      Model         (No.)Size(mm)     Voltage        (V)      Power
 (kw)
Revolution (rpm)Air Volume (m3/h)
Pressure      (pa)



2G-2

200/8"220/3800.182800188080

2.5G-2

250/10"220/3800.2528003700160

3G-4

300/12"220/3800.251430260085

3G-2

300/12"220/3800.3728004600230

3.5G-4

350/14"220/3800.3714303700130

3.5G-2

350/14"220/3800.7528006000250

4G-4

400/16"220/3800.5514305300166

4G-2

400/16"220/3801.128008000300

5G-4

500/20"220/3800.7514309300196

5G-2

500/20"220/3801.5280014000350

5G-6

500/20"3800.37960770098

5G-4

500/20"220/3801.5143010400210

6G-4

600/24"220/3802.2143018700294

6G-6

600/24"3801.196013000176

6G-2

600/24"3803280022000400

6G-4

600/24"3803143019500300

7G-4

700/28"3803143024500315

7G-6

700/28"3802.296021500235

8G-4

800/32"3804143030000345

8G-6

900/32"3802.296025000190

9G-4

900/36"3805.5143035000295

9G-6

900/36"380396026000251

10G-6

1000/40"380496032000280

Photos of Axial Fan

220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation

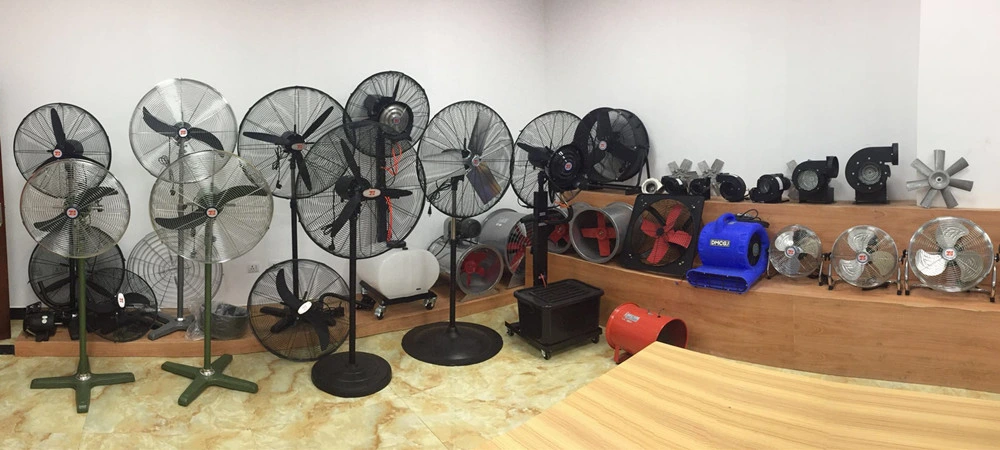

Our Showroom

220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation
220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation
220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation

Our Workshop

220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation

Production Process
1.Laser Cutting


220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation
220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation

2.Punching

220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation

3.Welding

220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation

4.Assembly & Package and Container Loading

220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation
220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation

We and our Customers


220V Fume Extractor Fan 500mm Tube Axial Flow Fan for Air Ventilation
About Soontom
Foshan Soontom Ventilation,Equipment Co. ,Ltd is Located in the electrical brand forest of Pearl River Delta. "Soontom" is specialized in manufacturing all kinds of ventilation equipments and cooling equipments ,such as centrifugal ventilator, axial ventilator, portable ventilator,industrial fan ,mist fan, exhaust fan, duct fan and high & medium & low pressure fan.

With the advanced technology, automated equipment and over 10-year constant efforts in this filed, "Soontom" has become a great potential factory that owns the mature technical force, advanced processing equipment, rich experience, extensive sales networks and complete service systems.

Base on such a large scale plant and a great variety of products, "Soontom" products sell well in China and extend to every corner of the world. Carrying on past biliance and making timely progress, we will keep on providing you with superion products,satisfying services and favorable prices.Welcome to Soontom.


FAQ
Q. Are you a manufacturer or a trading company?
A. We are a factory
Q. Where is your factory? Can i visit your factory?
A. Our factory is located in Foshan, Guangdong, welcome to visit our factory
Q. What products do you produce?
A. Centrifugal fan, axial fan, portable ventilator, duct fan, exhaust fan, dust collector, ring blower, high& medium & low pressure blower, misting fan, spray fan, etc, welcome to contact us to learn more details
Q. Can you offer sample?
A. Yes, we will prepare the normal sample for 5~7days, special customized need a little long time.
Q. What is your quality control system?
A. Each product needs to be inspected by QC before delivery.
Q. How long will it take to ship after order?
A. 20~30 days for one container
Q. If I have special require on color and logo, can you do that?
A. Yes, we can change the color as your requirements, also can put your logo on the products
Q. What is your payment terms?
A. T/T or LC at sight, 30% deposit in advance, the balance should be paid before shipping
